Lithium Batteries – what you need to know

If you’ve been thinking about a Lithium Battery, but were unsure, I’m hoping to provide some clarity on them and what you should think about before you buy. As a part of this process, I spoke to Dave from Revolution Power Australia, who specialise in Lithium batteries, and I learned a lot! Please note that I’m not an expert in this area, so I encourage you to do your own research.

Functionality

Lithium batteries offer improved functionality over their AGM and flooded alternatives in that they can be discharged to a higher level safely than their counterparts, providing more actual useable Amps.

Most AGM battery manufacturers will not recommend discharging the battery below 50%, because the heat produced when charging them back up can damage the cells and plates, and even warp the batteries, which can significantly reduce the life of the battery.

Conversely, Lithium batteries can be safely discharged to a 100% Depth Of Discharge (DOD) (@10.5v), which provides more useable amps vs. a maximum 50% DOD for an AGM to maintain its cycle life.

The team at Revolution Power sell their batteries based on useable Amp Hours (adhering to the Australian Standard of useable amps to 10.5v), rather than theoretical capacity, meaning you get exactly what you expect.

You can also anticipate 10x the cycle life compared to an AGM battery.  A Lithium battery cycled to 50% DOD can achieve 5,000 cycles vs. 500 cycles for an AGM battery.  This means that it is achievable for most users to obtain 10-12 years of life with a good quality Lithium Battery vs. 3-5 years with a good quality AGM.

Cost

Lithium batteries cost more than AGM batteries to manufacture, and the price of Lithium is not coming down.  As Lithium is an Ore product and traded on the stock market along side gold, platinum and silver, all manufacturers will pay the market price. Essentially this means that the amount and quality used in batteries and the internals directly affects the production cost of the battery.  We are talking about things like the cell quality and rating, internal Battery Management System, and the actual useable capacity the battery has.   Unfortunately, most of these variables can only be evaluated after purchasing the battery, which makes choosing the right one very important, but also very difficult.

To better understand comparative costings, I’ve focused costings here on a 100AH capacity (as sold).  Lithium batteries at this capacity range in price from about $600.00 to about $1900.00.  AGM batteries of a similar size range from about $200.00 – $600.00.  So, a top-quality Lithium battery will cost you about 3-4 times the price of an equivalent AGM.

I specifically asked the guys from Revolution about why there is such a disparity in Lithium batteries, and they provided some great info, which I’ve mentioned down in the important considerations section below.

Size

This is where Lithium batteries come into their own.  An equivalent (useable capacity) Lithium battery will take up ½ of the physical space of an AGM battery, which is great if you want to hide it somewhere.  Or alternatively, get double the power for the same space.

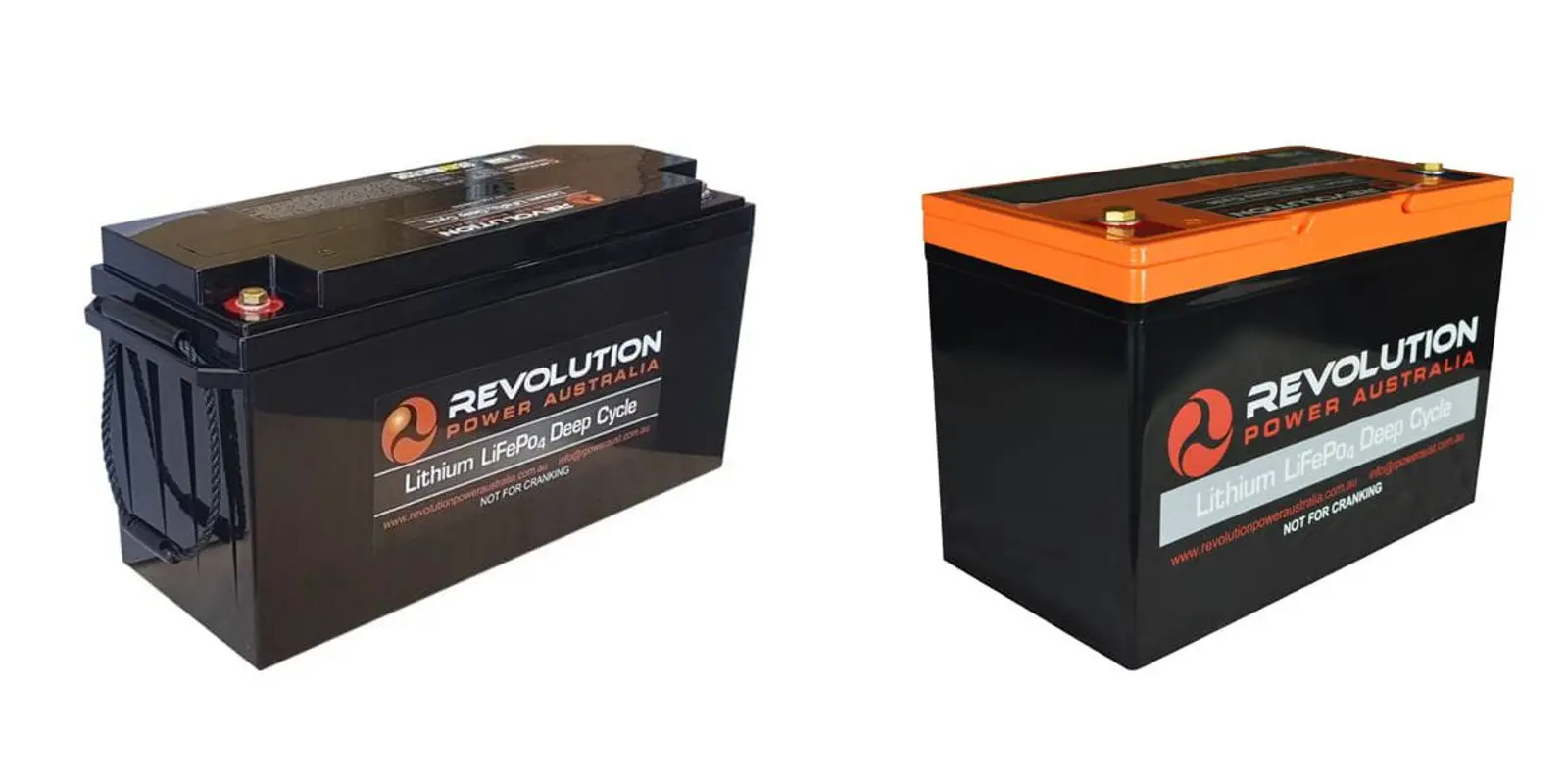

Comparing a Revolution Lithium battery to an AGM (100Ah)

Lithium 100Ah (100 Ah useable) – 305x165x215mm .

Lithium 60Ah Slimline (60AH useable) – 291x106x223 mm

AGM 100Ah (50Ah useable) – 307x169x210mm

Weight

Another big plus when it comes to Lithium is the weight saving.  A 105 Ah AGM battery will weigh approximately 28KG vs. 7.7KG for a 60Ah Lithium Battery, which both have very similar useable capacities.  Similarly, a 165Ah AGM will weigh 53.6 KG, where a 100Ah Lithium (with more useable power) weighs 12.8KG.

Even if you replaced a 105AH AGM with a 100AH Lithium, you would save 16KG of weight, and get double the useable capacity.  If you replaced a 165AH AGM with a 100AH Lithium, you’d save 40KG of weight, and still gain almost 20% in usable capacity.

Quick Re-charge

Aside from the weight savings, Lithium batteries also have significantly quicker re-charge vs. AGM batteries.  The low resistance in the Lithium cells allow the battery to accept the full output from the charger.  With a 30 Amp charger, a 100Ah Lithium battery can be fully charged from flat to full in just over 3 hours vs. 10+ for a 100Ah AGM battery.  This is a huge advantage with solar in that every amp that your solar panels produce are going directly into the battery.

Important Considerations before you buy

While in the long run, Lithium batteries outdo AGM batteries in pretty much every way (including whole of life cost), they are an investment up front, and there are a few more things you need to consider before you buy one.

Not all Lithium Batteries are the same

If you go online, you’ll see over $1,000.00 difference in price between some Lithium batteries that are claiming to be equivalent, based on the AH capacity.  While it is immediately tempting to go for the cheaper option, you need to do a little more homework before you buy. There are several videos going around demonstrating EBAY batteries labeled as 135Ah batteries only having 49Ah capacity to 10.5v, so you need to be diligent with your research.

Below are few more key things you need to consider when choosing between Lithium options.

C-Value

The C-rate is a measure of the charge/discharge rate of a battery over the period of 1 hour.  For a 100Ah battery a 1C rating means that you can draw 100amps continuously for 60 minutes.  For a .5C 100Ah battery, you can draw 50amps from the battery in an hour safely, and a .2C 100ah battery 20amps for 60 minutes.

A 1C battery isn’t necessarily better than a .5C battery, it just has different parameters, which limit the battery’s capability/usage and the BMS’ (internal battery management system) specifications for maximum continuous discharge.

To not stress the cells and achieve the longest cycle life for the battery, a 1C rated cell x 100Ah battery should contain a 100A continuous draw BMS.  A .5C cell x 100Ah battery should contain a 50A continuous draw BMS.  This means that the 100AH capacity can only be drawn safely over 2 hours for a .5C cell and that the maximum draw you can place safely on the battery is 50A.

They key in relation to the C value here is to make sure that your hourly current draw won’t exceed the max discharge rate of the battery you choose.  If it does, you can damage the battery, and it likely won’t be covered by any warranty because you’ve chosen to use it in a manner that exceeds the manufacturers specifications.

BMS mismatch

The guys from Revolution tell me that they have seen some batteries on the market use a BMS (this is the batterys’ internal management system) designed to take up to 100A, but cells in the battery are only .5C, which means they are only designed for a 50A BMS.  This means that the battery is stressing the cells to deliver the current, which will result in reduced performance and life over time.

Apparently, the only way to tell whether the BMS is matched to the rating of the cells in the battery is to check the output voltage of the charged battery with a Multi-meter, and then apply the maximum load stated by the battery manufacturer.  Start with 50A, and the voltage should stay constant.  Up the draw to 100A and then see if the voltage drops.  If it stays the same, the BMS is matched to the cells.  If it drops, then you’ve got a mismatch.

Charging

Lithium batteries need to be charged by a charger that has a Lithium charging profile.  So, if you have an older system, you’ll need to check with the manufacturer whether they have a Lithium profile, or otherwise you’ll need to change your in-vehicle charger to be able to use it. This is critical because you don’t want to ruin the battery by not charging it properly or get a reduction in performance from such an expensive battery.

Know your realistic current draw

Before you buy a battery, whether Lithium or not, you probably need to consider your maximum current draw, based on all the things you could actually run off the system.  A 100AH 1C battery can run a 1000W invertor (divide wattage by 10 to get the amps required to run the invertor) using 1000W of power.  But if using the 1000W load on the invertor, you are putting the maximum load on your battery, so if you are running anything else concurrently, then you’ll need bigger batteries.  If you don’t forecast your current draw properly, your battery may appear to handle the higher draw, but in reality you will cook the cells of the battery as it struggles to safely deliver the power required, and this may mean you kill your battery much sooner than you should.

Summary

Lithium batteries stack up on all fronts, as long as you match the capacity of the battery to your needs, and can spare the upfront investment required.  There is no need to throw your existing batteries out just yet, but perhaps it is worth putting a few extra $ away for when the current ones give up the ghost.  It will last longer, weigh less, and give you more output than other types.

A big thanks to the team at Revolution power Australia who were very helpful in answering all of my questions. If you have a question for them, or would like more information, check out their website at https://www.revolutionpoweraustralia.com.au/ or call them on 1300 303 498.
