Here’s an Unsealed 4X4 driveway DIY you can knock over before you head off on holidays: how to check and tighten wheel bearings!
Wheel bearings are something you don’t think about until they’re whining their head off like a millennial having to go to work, or you’ve just lost a front wheel on the way down Toowoomba plateau. So first and foremost, let’s look at what leads to a quick death of wheel bearings – and how to minimise their wear and the chance you’ll lose a wheel.
Bigger wider tyres
Despite all the pros of going bigger and wider in the rubber department, one of the cons is that it increases the side-load on wheel bearings, which will cause the rollers to run with more pressure on one side than the other. We’re not saying don’t do it, just understand that your bearings will flog out sooner than they otherwise would.
Neg 500 wheels
Same deal as above… by putting the contact point of the rubber and wheel outside (or even inside) the centre of the mating face of wheel to hub, you’re going to increase side-load again. Go neg 44s and it’ll be even worse…
Cooling speed
An inherent aspect of wheel bearings (and bearings in general) is heat. Driving for three hours with a boat on the back, pulling up at the boat ramp and launching the tinny as soon as you get there is going to cool the bearings down to cold pretty bloody quickly. This can crack the bearing and cage (that holds the rollers in place), and you’re gonna have a bad day. The other issue is that going from hot to cold creates a vacuum behind the seal, and can draw water into your hub or behind the bearing. If you didn’t know, rust is bad, and chocolate milk for oil just won’t cut it, m’kay?
Metallurgy
Don’t. Buy. Cheap. Bearings. Ever. If you absolutely must save a couple of dollars on your rig, stop putting those stupid My Family stickers on it (chances are, your life and the lives of your family members aren’t going to rely on the stickers). Wheel bearings, however, stop the wheels falling off… which is kinda important. Cheap bearings are cheap for a reason, whether through the manufacturing process, materials used or both, so cheap won’t last. Make sure you get Japanese bearings, or European – think Timkin, SKF, etc. Do not buy crappy Chinese bearings!
Incorrect fitment
Last but certainly not least, over-tightening (or under-tightening, for that matter) will lead to a swift death of the bearings. If you’re going to have a crack at doing them yourself, know how to torque them up properly, or leave it to an expert. On this thought, it’s absolutely worth getting and keeping the right size hub socket in your vehicle, just in case you’re 500 miles from home and a wheel bearing does work itself loose – you can nip it up to get yourself home safely and not have to worry about a wheel falling off.
Bonus points: Genuine wheel bearings.
Something that might blow your mind a bit here is that genuine bearings (and seals for that matter), that come in a little genuine parts box, will actually hold an SKF or Timken (or other brand name) bearing. True story. As an example, Toyota doesn’t make bearings; it purchases top-quality parts and puts them in a genuine box; most often a quality Japanese bearing. All of the Toyota Genuine seals I’ve come across were NOK branded, too, so you don’t need to buy ‘genuine’. Just make sure you go to your local bearing shop (CBC, for example) and buy high-quality ‘brand name’ bearings. Alternatively, you can absolutely get a Drivetech or Terrain Tamer wheel bearing kit; they only use quality Japanese bearings in their kits.
How to check your wheel bearings?

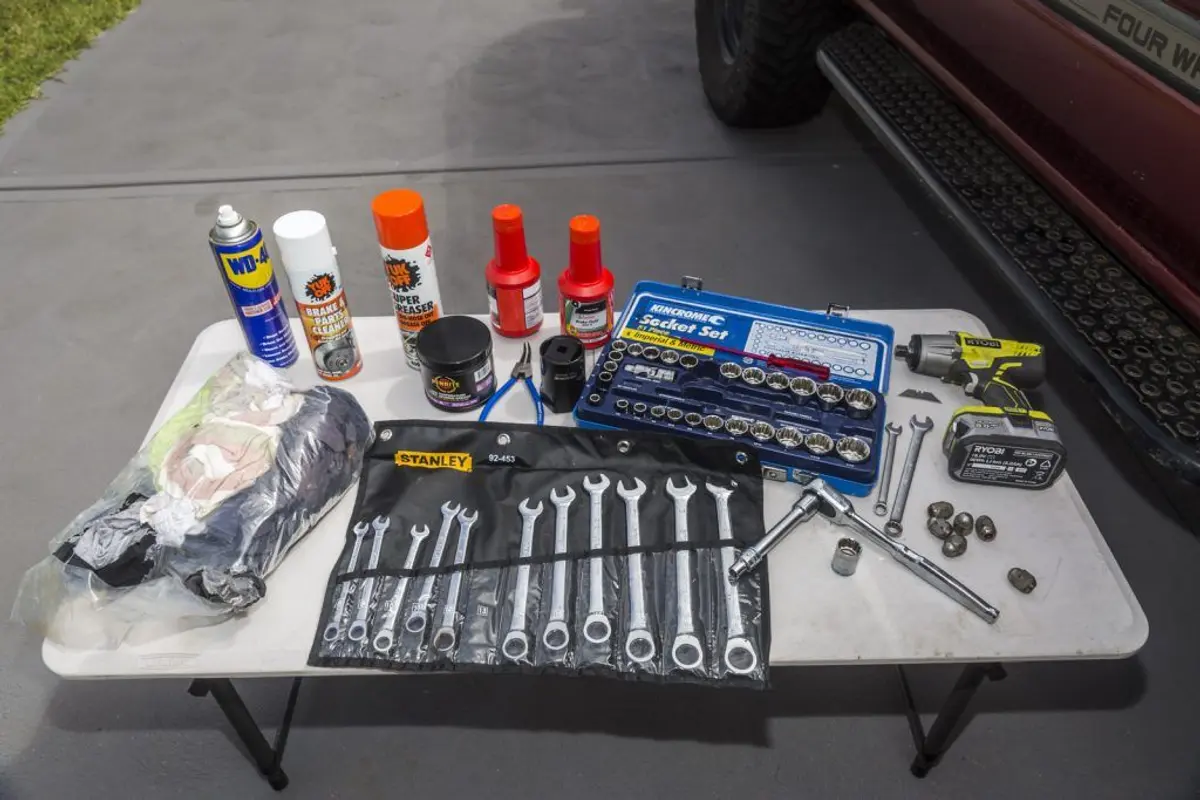

Tools you’ll need
It’s pretty straightforward in the tool department (for an 80 Series LandCruiser, anyway):
- Decent socket set
- Decent spanner set
- Rattle gun… because easy mode
- Razor blade for cleaning up any gaskets that get destroyed (think hub gasket) – a Toyota Wheel Bearing kit should come with one for each side.
- Circlip pliers
- Hub socket (54mm for the ’Cruiser)
- High temp bearing grease
- Degreaser and brake cleaner (brake cleaner doesn’t leave any residue)
- A couple of bottles of brake fluid (as I upgraded my brakes to bigger callipers and discs while I was at it) plus a full brake fluid flush
- WD40 for when the six-foot breaker bar just won’t get that nut off!
Check for any play
Start off by getting the wheel off the ground and checking to see if there is any play top to bottom and side to side.
Do this by grabbing the outside of the tyre and giving it a bit of ‘wiggle’ top and bottom and both sides. If there is any movement your wheel bearings are more than likely shot.
Pull the hub cover off

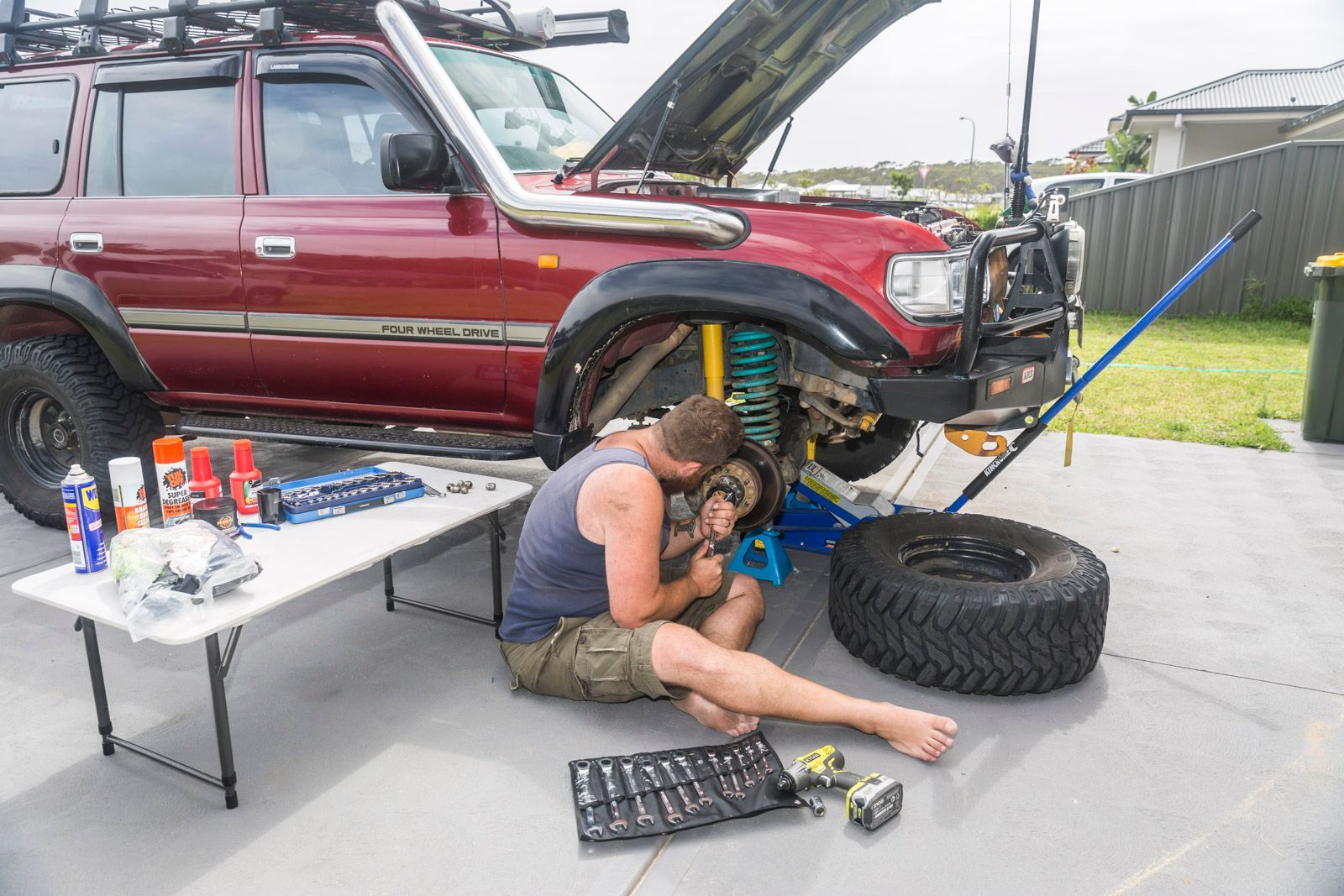

Wheels and brakes come off first; and if we need to tell you how to do this, then you’re better off leaving the job to a mechanic! If you’re game and not bad on the spanners, once you’ve got the wheel and brakes off, you’ll want to pull off the outer locking hub. It’s easiest to do this with the hub in ‘Free’ as it pulls the hub together, so it’s a nice tight part when you pull it out (not a hub hanging on the end of a spring threatening to break up faster than Sting and The Police). After the six 10mm bolts are out, this should just pull straight out.

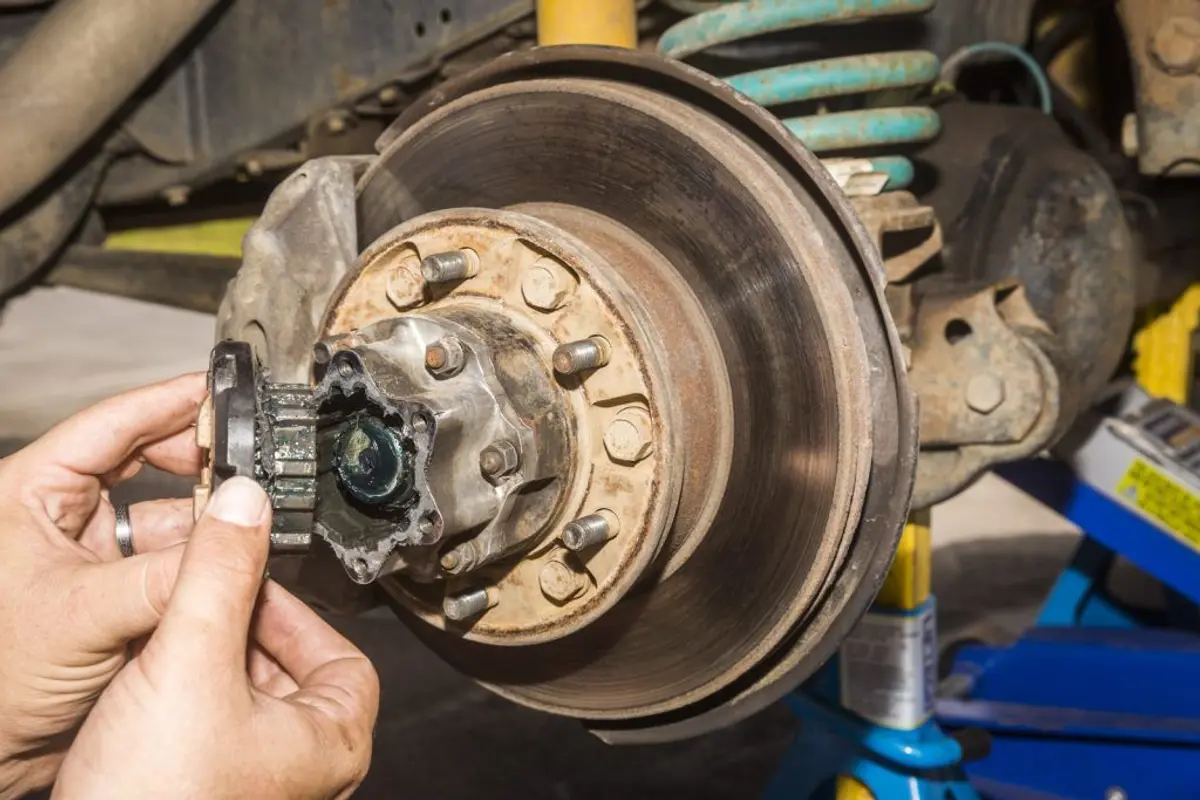

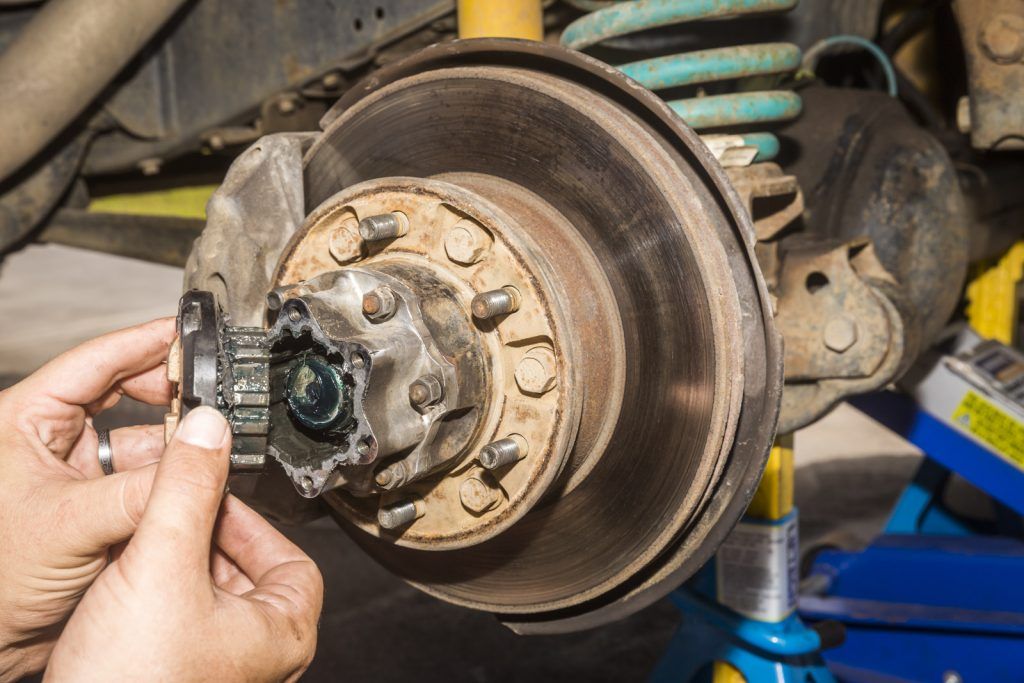

Remove the manual hub and circlip
Remove the circlip from around the end of the CV and undo the six 12mm nuts holding the manual hub on. Under the nuts you’ll find flat washers and cone washers. Use a brass drift and tap the end of the studs to loosen the cone washers and pull them out – a light tap with the hammer on the side of the hub will loosen them enough to get them out, or you can get a tiny flat-blade screwdriver into the splits in the cone washers and pull them out. You can use a pair of screwdrivers to lever the hub off if it’s a little tight.
Remove the wheel bearing lock nuts and lock washer

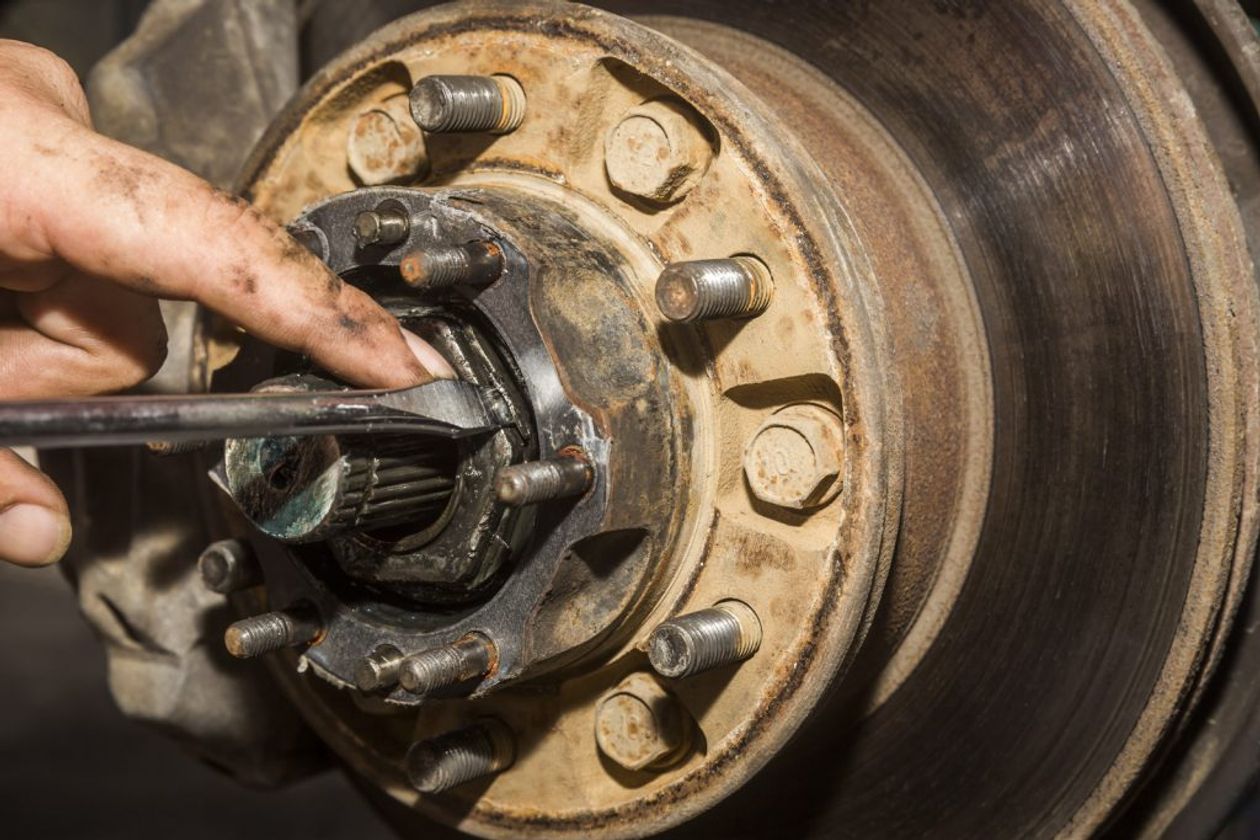

Next you’ll need to fold the tabs down on the lock washer to give access to the first wheel bearing nut. Once you’ve got the first nut off, you should be able to remove the lock washer and get access to the second wheel bearing nut. Make sure you flatten out the lock washer at this point so you can reuse it if it’s still in good nick (my kit didn’t come with a new lock washer). Then go ahead and undo the final wheel bearing nut and remove it from the hub.

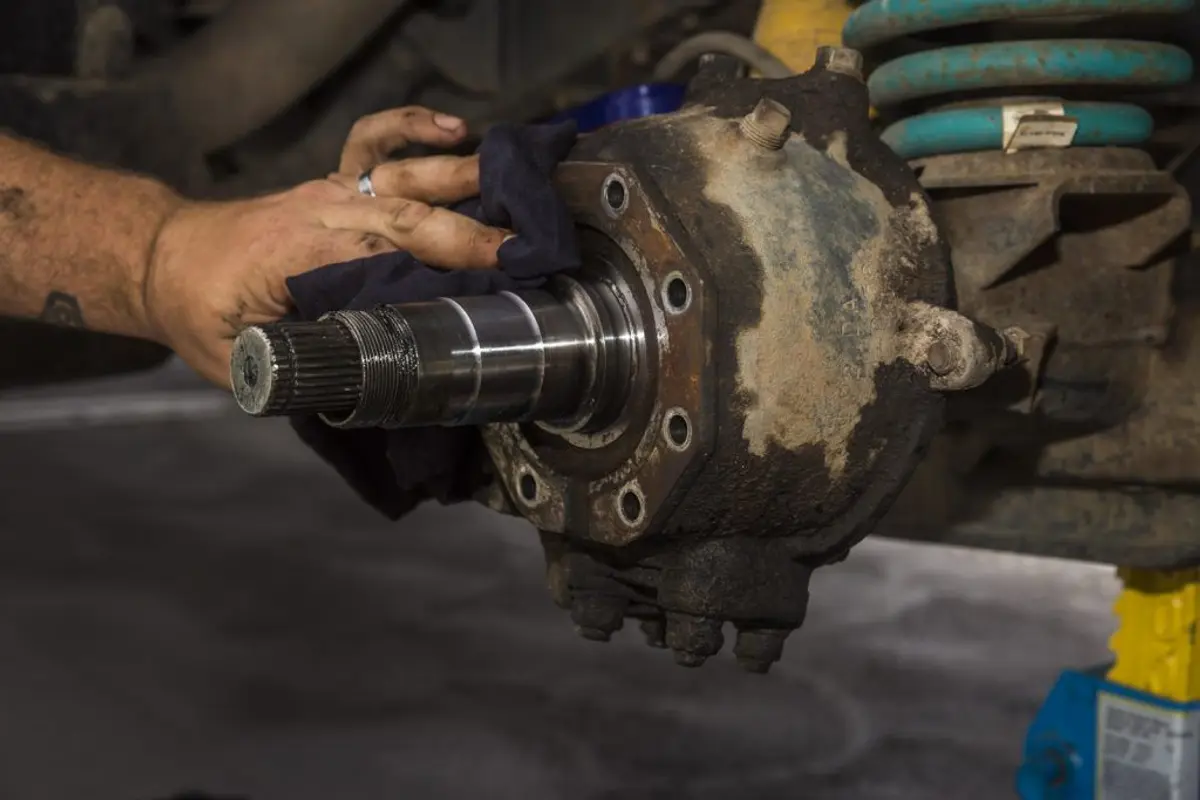

Remove the hub and rotor together, and clean them up!

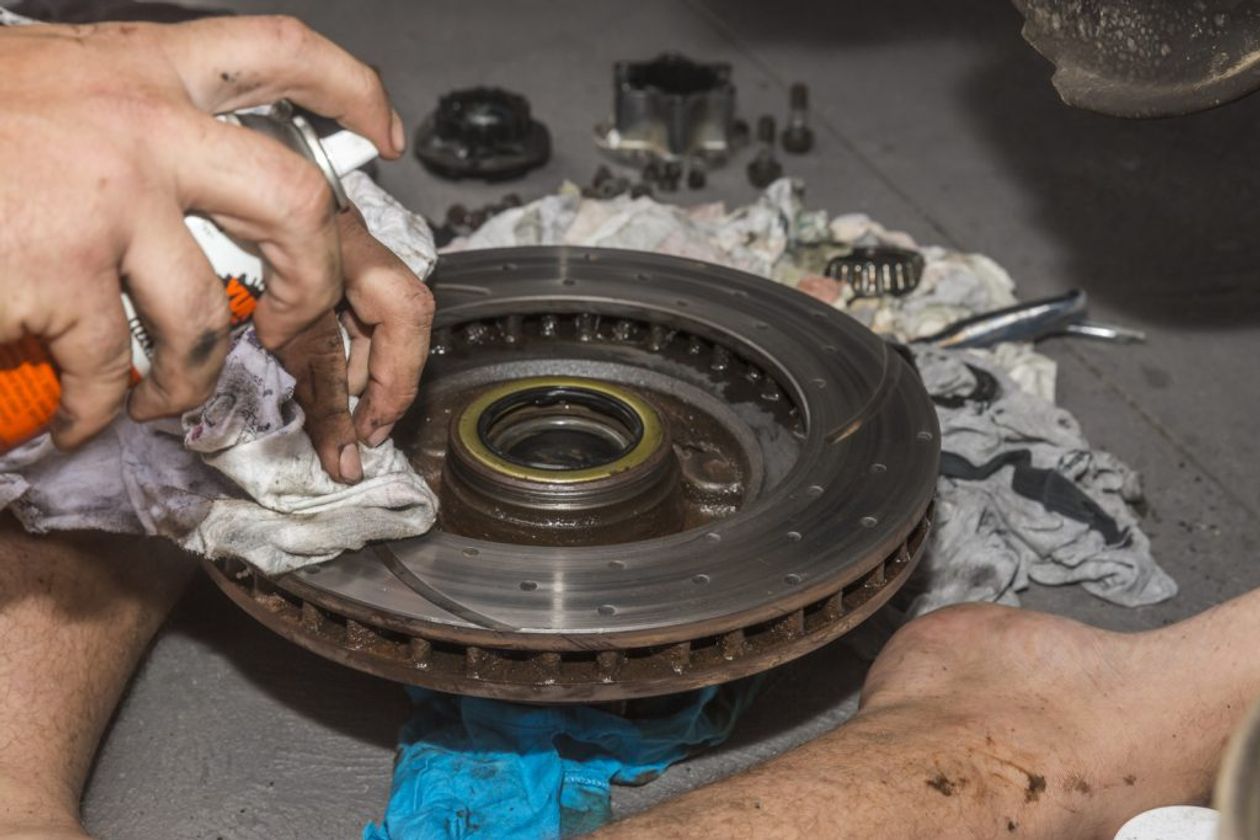

Now you’ve got the hub assembly off, give it a decent clean – cleaning out any grease and checking the seals for marks or obvious signs it’s been rubbing untrue. After cleaning the grease out of the hub assembly you’ll be able to see the wheel bearing’s cup and cones.
Repacking the bearings

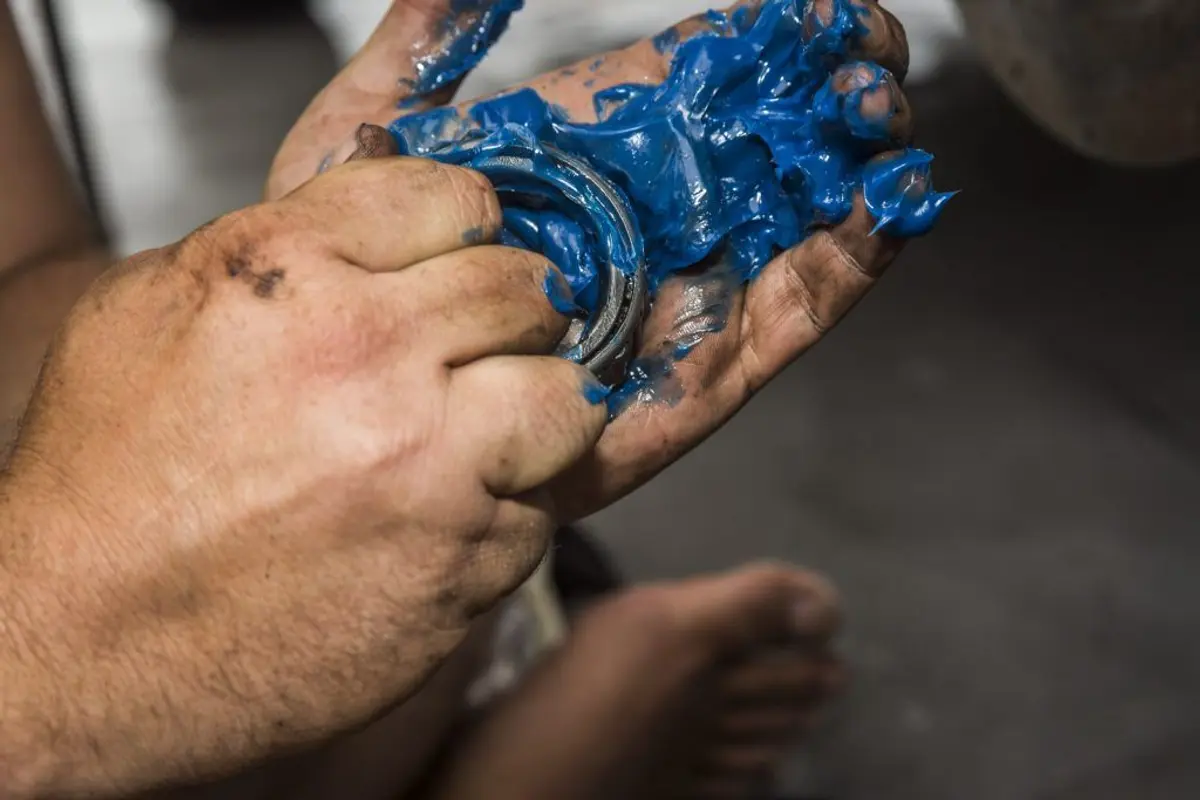

My bearings were in good nick, but the grease was closer to oil than grease, so I repacked them and retightened to spec. Essentially, you put some grease in the palm of your hand and push the bearing onto the grease so it forces the grease through the bearing. Keep adding grease, and pushing it through the bearing until it’s coming out the other side (the whole way round). Should you need to replace the bearings you’ll have to knock the cups out of the hub assembly, knock the new ones in until they’re all the way home, and grease the cones up as outlined.
Tightening and reassembly
Once you’ve repacked everything it’s time to put it all back together. I’m not going to go into torque settings or ‘feeling the bearing preload’ as it’s different across the different 4X4s out there… suffice to say, you’ll find it in the workshop manual or you can ask Google. From there it is just a matter of completely reassembling things opposite to the way you’ve taken it all apart… and then you’re done. Oh, make sure you check for play in the wheel when it’s all back together.
